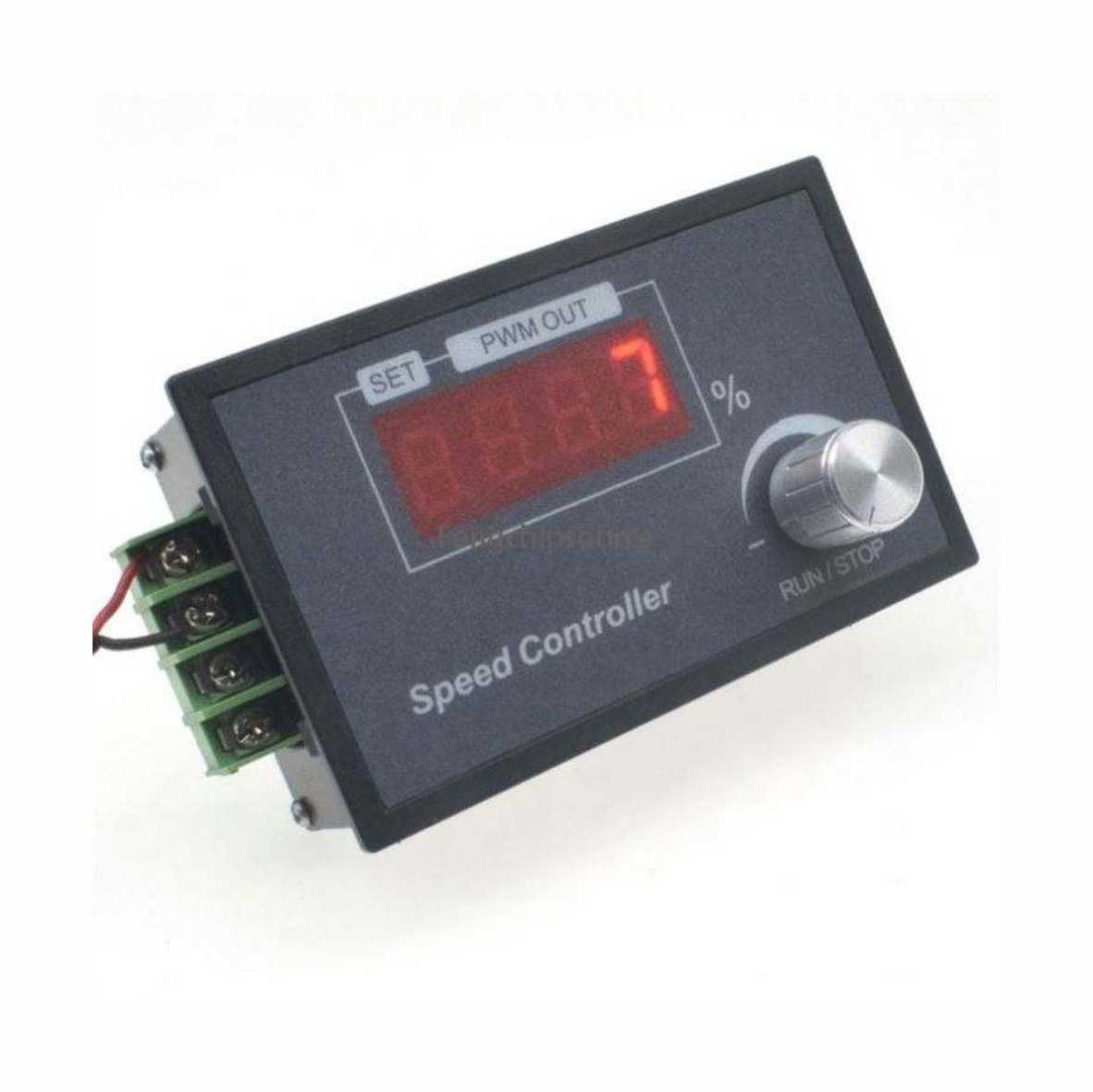

12V Window Cleaning Pump Controller

Take complete control of your pure water delivery with the 12V Digital PWM Pump Controller. Engineered specifically for water-fed pole (WFP) setups, this panel-mount flow regulator features a digital encoder knob, soft start/stop protection, and a clear LED display—allowing you to fine-tune water flow, save battery life, and extend the lifespan of your pump.

Key Features & Benefits:

• Digital Encoder Knob: Enjoy 360-degree precision control with integrated push start/stop functionality for fast, reliable operation on the job.
• Soft Start & Soft Stop: Programmable ramp-up/ramp-down times prevent motor strain and pressure spikes when powering on or shutting off.
• Min/Max Speed Limits: Set customized upper and lower speed limits to prevent motor stalling at low power or over-pressurization at high power.
• Power-Down Memory Storage: Saves your custom parameters so you never lose your preferred flow rate when turning off your van system.
• 0–100% Digital LED Display: High-visibility 7-segment digital screen gives clear, real-time monitoring of your flow rate settings.
• High Continuous Output: Built to handle up to 20A continuous load (30A peak), making it suitable for heavy-duty 12V window cleaning pumps.

Technical Specifications:

• Input Voltage: DC 6V – 60V (Matched to motor rated voltage)
• Output Voltage: Linear under load
• Current Capacity: 0–30A Peak (20A Continuous)
• Speed Regulation Method: Current regulation via 360° PWM Digital Encoder
• Adjustment Range: 0% – 100%
• Module Dimensions: 96mm x 61mm x 34mm (3.8" x 2.4" x 1.3")
• Panel Cutout Size: 92mm x 56mm
• Net Weight: 105 grams
